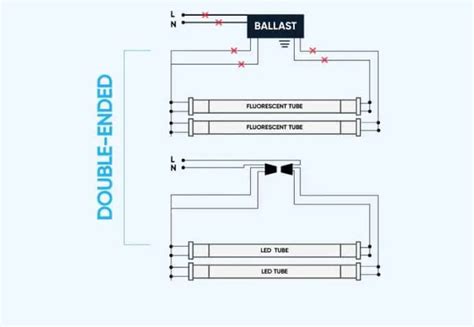

Halco led t8 wiring diagram. ProLED Double Ended Bypass T8 LED Installation Instructions Halco Lighting Technologies 2940 Pacific Drive, Norcross, GA 30071 Toll Free 800. DO NOT make or alter any open holes in an enclosure of wiring or electrical components during kit installation. Mark re-wiring method on Relamping Label and attach it on a visible location inside the fixture. This diagram provides a step-by-step guide to help you install and connect your T8 LED lights safely and efficiently. . Note: Ballast must be retained in place. THIS RETROFIT KIT INCLUDES, LED TUBE, OPERATING INSTRUCTIONS, AND FIXTURE LABEL FOR THE DOUBLE OR SINGLE ENDED APPLICATION. Select from 2FT, 3FT, and 4FT lengths, with CCT selectable options of 3500K, 4000K, and 5000K. KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. T8 Type B (Bypass) T8 Emergency T8 Hybrid (A+B) T8 Type A (Direct) T8 Ubend LED Minature & Specialty LED JC Wedge Low Voltage Lamps LED JC Low Voltage Lamps LED Sign Lamps (S-Type) LED Plug-in CFL and Linear Replacements LED CFL Replacement Plug-ins LED Linear Plug-ins LED HID Replacements LED HID Selectable Retrofit Lamps LED High Bay Retrofit May 26, 2015 · BY AMERICAN WEST COAST LED LLC: This is how to direct wire your T8 tubes and remove the ballast from the fixture. omcce sndg utmaj atm twwbk qnkuowr rrg dlon onfm nfcgr
